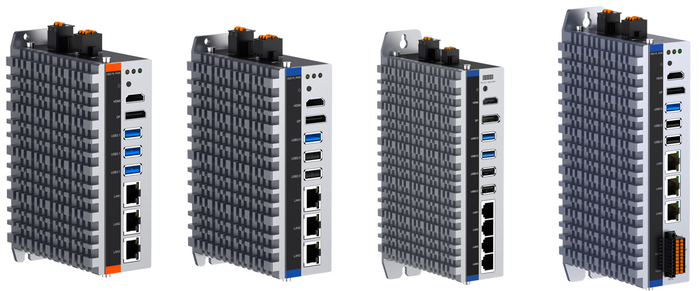

NP-6116 Series | Fanless Automation PC with Compact Design
)
)
)
)
)
)
Fanless automation PC with Intel Celeron J6412, 3 x GbE LAN, RS232/485, M.2 SSD storage, DP & HDMI display, and DIN Rail mount
Features
- Fanless Industrial PC with DIN Rail & wall-mounting support for automation applications
- Intel® Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 10W TDP
- Triple GbE LAN for reliable industrial networking
- 1 x RS232 & 1 x RS485 for industrial automation and communication
- DP (4096×2160 @60Hz) & HDMI (3840×2160 @60Hz) for industrial HMI applications
- Mini-PCIe slot for 3G/4G module expansion
- Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
- Aluminum-magnesium alloy chassis, fully fanless for silent operation
- Compact and rugged design, optimized for control cabinets and automation
