NP-6116 | Compact Fanless DIN Rail Automation PC with DI/DO & Dual Display
Compact Design Real-time Automation PC | NP-6116
NP-6116 series is ultra-compact Control Cabinet Fanless Industrial PC with Low-power consumption processor, based on Intel® Celeron™ J1900/J6412.
NP-6116-IO-J1900
Features
Fanless embedded automation PC with DIN-rail or wall-mounting
Intel® Celeron J1900 quad-core CPU, 10W low power
3 x Gigabit LAN, 1 x USB 3.0, 2 x USB 2.0
2 x COM (1 x RS232, 1 x RS485)
1 x HDMI + 1 x DisplayPort with 1080p and WQXGA resolution support
8 x DI / 8 x DO (NPN or PNP configurable)
Full-size Mini PCIe with SIM for 3G/4G or Wi-Fi
M.2 SATA2.0 for high-speed SSD storage
Wide voltage DC 12–24V input with full protection
NP-6116-IO-J6412
Features
Fanless DIN-rail or wall-mounted embedded automation PC
Intel® Celeron J6412 processor with 4 cores and low 10W TDP
3 x Intel® Gigabit LAN, 3 x USB 3.1, 1 x RS232 + 1 x RS485
1 x HDMI and 1 x DisplayPort, supporting up to 4K resolution
8 x DI / 8 x DO (NPN or PNP options for digital I/O control)
Full-size Mini PCIe with SIM slot for wireless module expansion
1 x M.2 2242 slot for high-speed SSD storage
12–24V DC input with protection for overvoltage, current, and polarity
Rugged aluminum-magnesium housing with passive cooling
Operating temperature: -20°C to 60°C
NP-6116-J1900
Features
Fanless Industrial PC with DIN Rail & wall-mounting support for automation applications
Intel® Celeron J1900, 2.0GHz, 4 cores/4 threads, 10W TDP
Dual GbE LAN for reliable industrial networking
1 x RS232 & 1 x RS485 for industrial automation and communication
DP (2560×1600 @60Hz) & HDMI (1920×1080 @60Hz) for industrial HMI applications
Mini-PCIe slot for 3G/4G module expansion
Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
Aluminum-magnesium alloy chassis, fully fanless for silent operation
Compact and rugged design, optimized for control cabinets and automation
NP-6116-J6412
Features
Fanless Industrial PC with DIN Rail & wall-mounting support for automation applications
Intel® Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 10W TDP

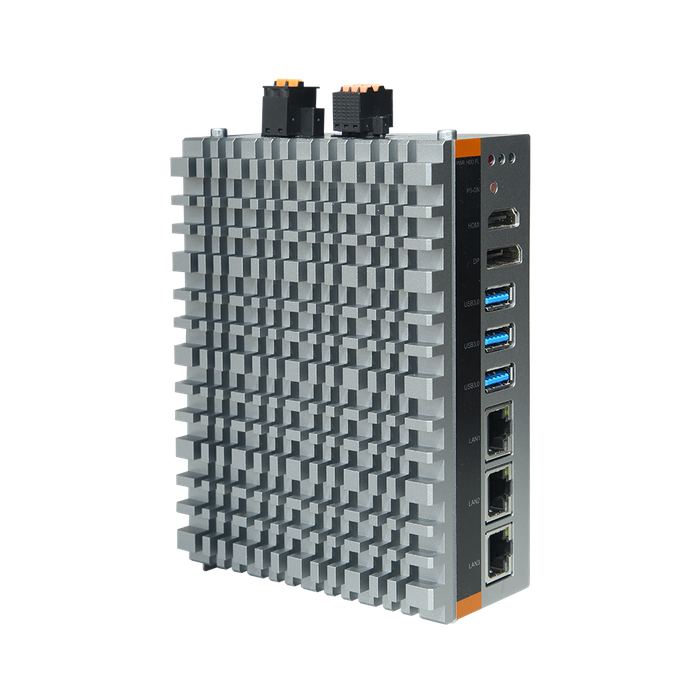

Triple GbE LAN for reliable industrial networking
1 x RS232 & 1 x RS485 for industrial automation and communication
DP (4096×2160 @60Hz) & HDMI (3840×2160 @60Hz) for industrial HMI applications
Mini-PCIe slot for 3G/4G module expansion
Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
Aluminum-magnesium alloy chassis, fully fanless for silent operation
Compact and rugged design, optimized for control cabinets and automation
NP-6116-N97
Features
Fanless Industrial Box PC with aluminum-magnesium alloy chassis
Powered by Intel® N97, 4-core processor, 6MB cache, 12W TDP

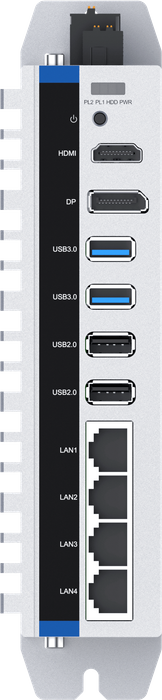

4 x Intel i210-AT Gigabit LAN for high-reliability networking
2 x COM ports: 1 x RS232, 1 x RS485
1 x HDMI + 1 x DisplayPort, up to 4K resolution
2 x USB 3.0 + 2 x USB 2.0 for peripheral connectivity
1 x M.2 2242 M-Key slot for high-speed SSD storage
1 x Mini PCIe with SIM slot for 4G/Wi-Fi module expansion
12–24V DC input, protected against overvoltage, overcurrent, and reverse polarity
Compact size for DIN rail or wall-mounting
Wide temperature tolerance: -20°C to 60°C (SSD)
