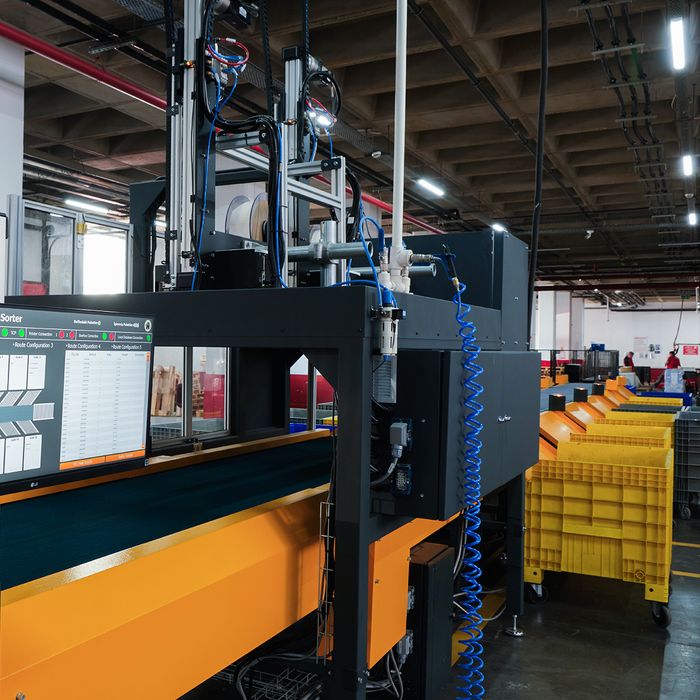

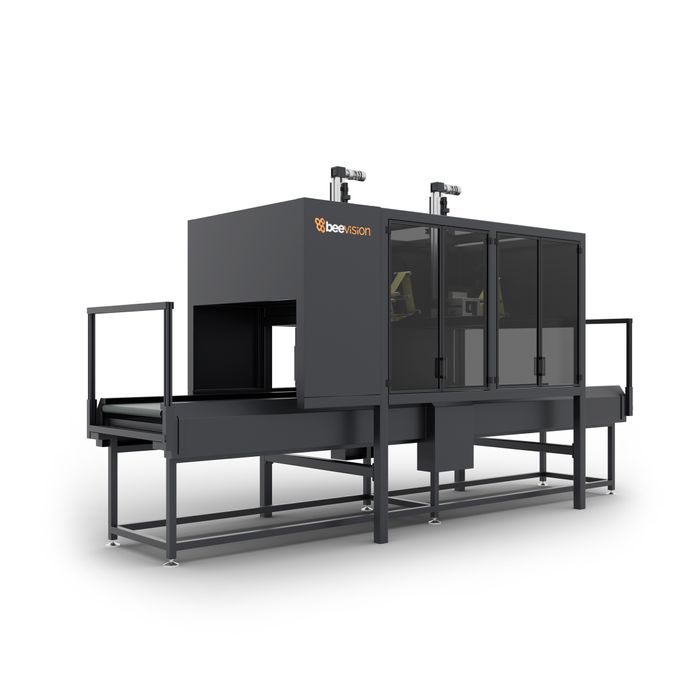

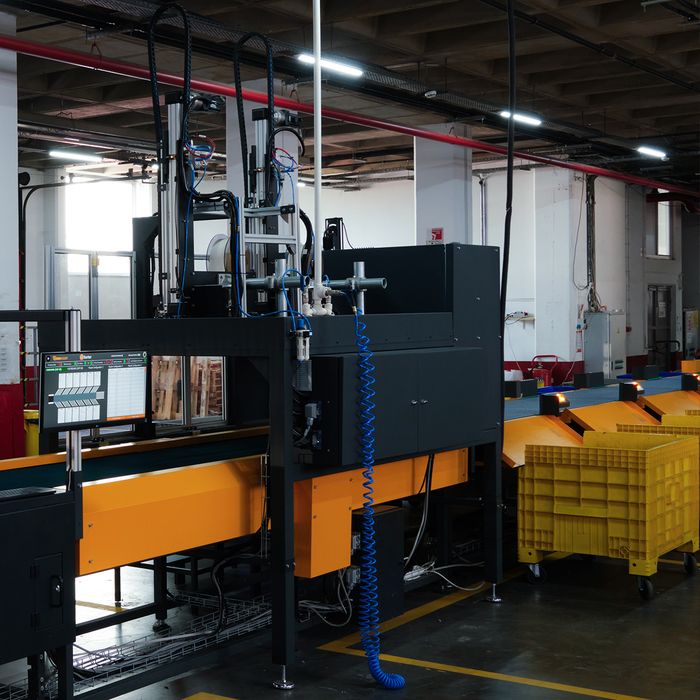

BeeVision 400 - Automatic Label Applicator
)
)
)
)
)
)
Ability to apply labels onto
bags, envelopes and parcels of different heights.
Automatic label applicator provides unprecedented harmony of software and hardware with other BeeVision products.
Thermal Label Support
Thermal label support provides cost savings by eliminating ribbons, speeds up operations, reduces waste, and ensures reliable and hassle-free operation.
Label Verification
The applied labels are checked by the BeeVision 200 barcode reader during output to ensure that the label is applied correctly.
Easy Label Swap
Thanks to its innovative mechanical design, the label slot can be easily swapped by a single person without the need for any tools.
Plug & Measure
Ready to use out of the box for fast deployment and minimal setup time.
Variable label size support
Supports a wide range of label sizes for flexible operations.
10x15 cm recommended label size
Optimized for 10x15 cm labels for best performance and reliability.
Works in harmony with BeeVision 190 DWS
Seamless integration with BeeVision 190 DWS for end-to-end automation.
Multiple label printer heads
Supports multiple printer heads in one application for high throughput.
BeeHive software integration
Integrates with BeeHive warehouse automation management software.
Capacity | 1500 Label Application Per Hour for Each printer |
Minimum Object Size for Label Application (LxWxH) | 10 x 10 x 0cm |
Maximum Object Size for Label Application (LxWxH) | 80 x 80 x 60cm |
Label Size | 10 x 15mm |
Maximum Power Consumption | 2kW |
Integration With Other BeeVision Products | BeeSort, BeeVision 190, BeeVision 190-XL |
Integration Interface | Web Service API |
Energy, Network & Requirements | 22kW 380V Power Cable, 3.5kW 220V Power Cable, CAT6 Ethernet Cable for Internet Access, 1.1m³/min 8 hp Air Source/Compressor |
Attachable Label Roll Specifications | Inner Diameter 8 cm - Outer Diameter 30 cm |
Throughput | 12mm label width - 1500 labels per hour with each printer 12mm label width - 1200 labels per hour with each printer 18mm label width - 1000 labels per hour witch each printer 2 Printers Total: 3000 labels per hour (15mm) 2400 labels per hour (18mm) 2000 labels per hour (12mm) |
