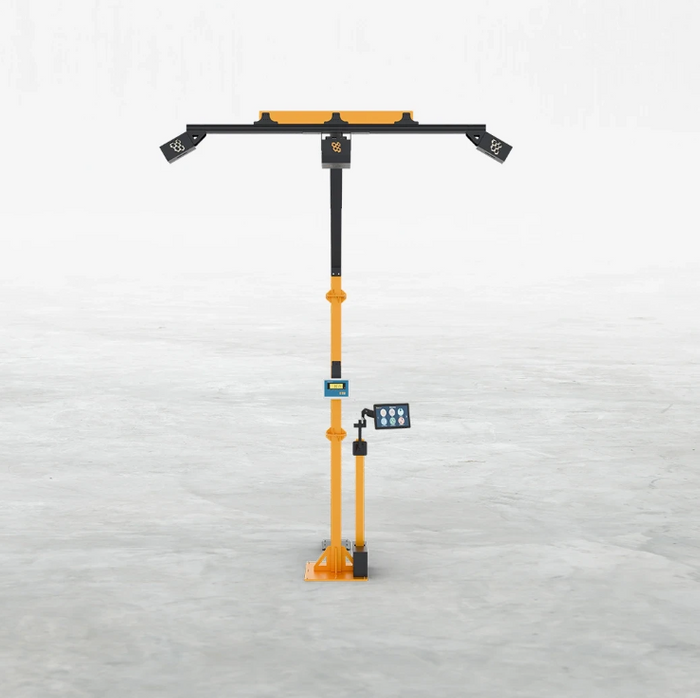

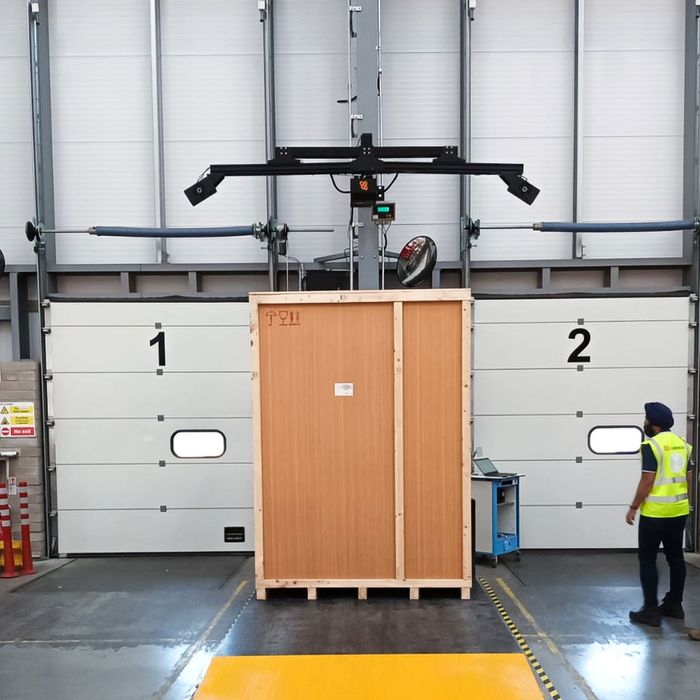

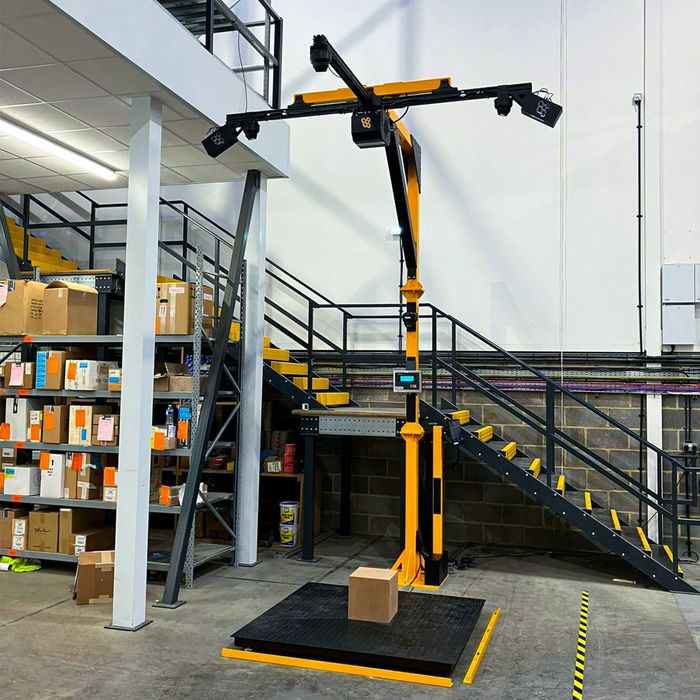

An advanced and highly accurate pallet dimensioning system with optional IP camera and scale integration.

Don't worry about handling the shiny or black foil covered pallets

they can also be measured with ease.

Mount it and start to use it right away.

Seamless integration with warehouse automation software.

IP Camera

Capture product image from left and right side with embedded cameras. Supports additional IP Cameras for more angles.

Touch Screen & Scale Monitoring

Can be connected to any brand of scale with serial cable. UI is available on the screen for easy usage and simple calibration.

Powerful Processor

No cloud connection required. The robust processor swiftly handles the data, preparing it for sharing, storage, and synchronization.

Self deployable

Install and start using immediately, no complex setup required.

No need for external PC or SW

All processing is handled on-device, no external computer or software needed.

Measure regular and irregular objects

Accurately measures both standard and irregularly shaped pallets.

Extra data: inner-box count, SKU barcode

Capture additional inventory data such as inner-box count and SKU barcodes.

Download results as Excel file

Export measurement results directly as Excel files using the WebUI.

Trigger measurement with scanner, scale or API

Flexible operation: trigger measurements via handheld scanner, scale, or API.

Technical Specs

Technology

AI-Based 3D Image Processing

Measurable Objects

Cubic or Irregular Shaped Objects

Accuracy

±0.5 cm

Integration Interface

Web Service API, TCP/IP Socket, File Upload to FTP, SFTP or Samba, RS232

Ports

Wi-Fi, Ethernet, USB, RS232

Product Output

Width, Length, Height, Weight, Dimensional Weight, Real Volume, Barcode, Image

Maximum Power Consumption

75W

Operating Temperature

10°C - 50°C

Housing

Aluminum and steel

Product Dimensions

274.5cm x 37.5cm x 40.5cm

Minimum Object Dimensions

30cm x 30cm x 30cm

Maximum Object Dimensions

240cm x 240cm x 240cm

Product Weight

27kg

Total Package Dimensions

124cm x 47cm x 38cm

Total Package Dimensions and Total Weight

(with Ground Mounting Kit)

Package 1 - 124cm x 47cm x 38cm

Package 2 - 185cm x 105cm x 81cm

( Total Weight - 180kg )
