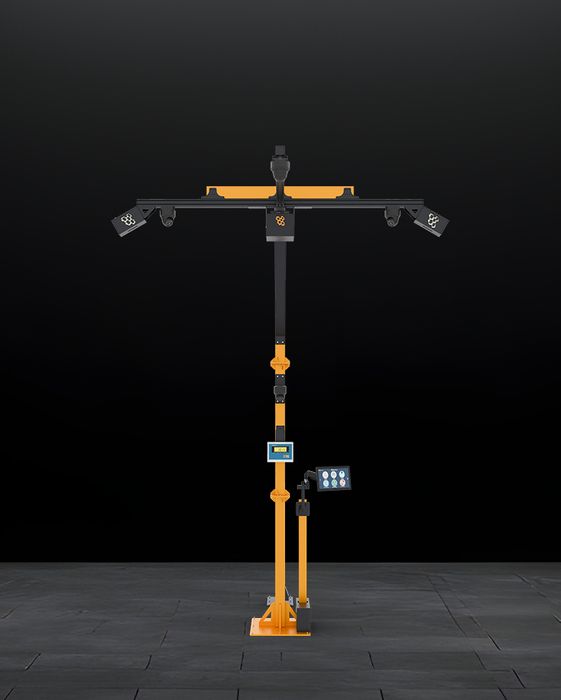

BeeVision 272 - Static Pallet Dimensioning System
)
)
)
)
)
)
they can also be measured with ease. Mount it and start to use it right away.
Seamless integration with warehouse automation software.
IP Camera
Capture product image from left and right side with embedded cameras. Supports additional IP Cameras for more angles.
Touch Screen & Scale Monitoring
Can be connected to any brand of scale with serial cable. UI is available on the screen for easy usage and simple calibration.
Powerful Processor
No cloud connection required. The robust processor swiftly handles the data, preparing it for sharing, storage, and synchronization.
Self deployable
Install and start using immediately, no complex setup required.
No need for external PC or SW
All processing is handled on-device, no external computer or software needed.
Measure regular and irregular objects
Accurately measures both standard and irregularly shaped pallets.
Extra data: inner-box count, SKU barcode
Capture additional inventory data such as inner-box count and SKU barcodes.
Download results as Excel file
Export measurement results directly as Excel files using the WebUI.
Trigger measurement with scanner, scale or API
Flexible operation: trigger measurements via handheld scanner, scale, or API.
Technology | AI-Based 3D Image Processing |
Measurable Objects | Cubic or Irregular Shaped Objects |
Accuracy | ±0.5 cm |
Integration Interface | Web Service API, TCP/IP Socket, File Upload to FTP, SFTP or Samba, RS232 |
Ports | Wi-Fi, Ethernet, USB, RS232 |
Product Output | Width, Length, Height, Weight, Dimensional Weight, Real Volume, Barcode, Image |
Maximum Power Consumption | 75W |
Operating Temperature | 10°C - 50°C |
Housing | Aluminum and steel |
Product Dimensions | 274.5cm x 37.5cm x 40.5cm |
Minimum Object Dimensions | 30cm x 30cm x 30cm |
Maximum Object Dimensions | 240cm x 240cm x 240cm |
Product Weight | 27kg |
Total Package Dimensions | 124cm x 47cm x 38cm |
Total Package Dimensions and Total Weight (with Ground Mounting Kit) | Package 1 - 124cm x 47cm x 38cm Package 2 - 185cm x 105cm x 81cm ( Total Weight - 180kg ) |
